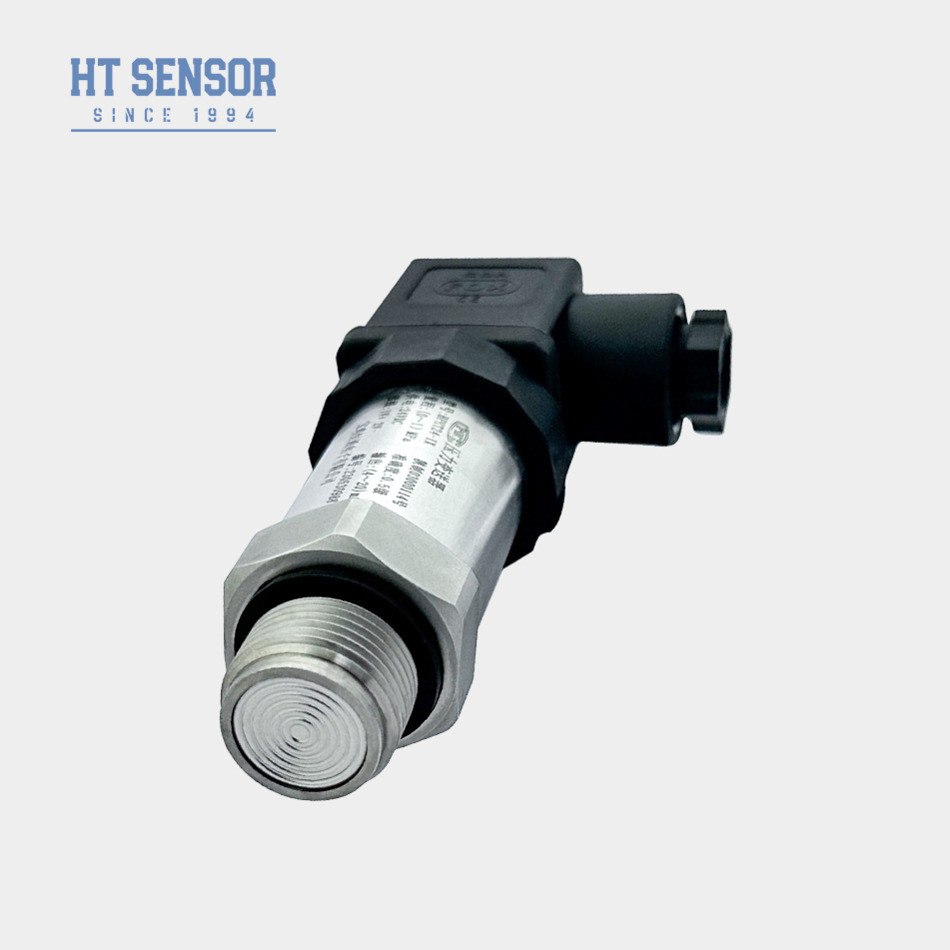

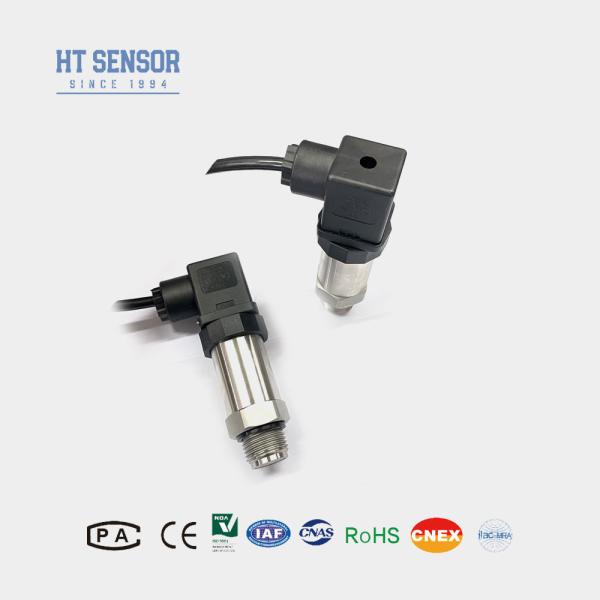

Hydraulic And Pneumatic Systems BPHT24 Flush Diaphragm Industrial Pressure Sensor

  • 1
  • 2

Brand Name : HT SENSOR

Model Number : BPHT24

Certification : ISO9001

Place of Origin : Baoji,China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 5000PCS/Month

Delivery Time : 5-8 work days

Packaging Details : Standard Export Package

Model NO. : BPHT24

Range : 0-10kpa~035mpa

Power : 5Vdc / 12-32Vdc

Output : 0.5-4.5VDC /4-20mA

Connect : M20*1.5 G1/2

Type : Flush Diaphragm industrial pressure sensor

Measuring Medium : Liquid,gas ,Beverage glue and so on

Accuracy Grade : 0.5%FS

material : Stainless steel

Customization : OEM and ODM

Contact Now

Hydraulic and Pneumatic Systems BPHT24 Flush Diaphragm Industrial Pressure Sensor

BPHT24 Flush Diaphragm Pressure Sensor

Introduction of flush diaphragm industrial pressure sensor transmitter:

The BPHT24 flat diaphragm pressure transmitter consists of a strain gauge and diffused silicon front end. The specially treated strong flushing diaphragm at the measuring end of the strain gauge flat diaphragm ensures that hard particles in the measured medium will not damage it. This transmitter features a compact structure, corrosion resistance, vibration resistance, particle impact resistance, and a wide range of temperature compensation. The diffused silicon front type incorporates an imported diffused silicon core system and utilizes tuning and digital compensation technology to ensure reliable product performance and stable output.

Product Features of flush diaphragm industrial pressure sensor transmitter:
1. Various pressure interface options.
2. Designed for hygienic applications to prevent medium scaling.

3. High accuracy with a fully stainless steel structure.
4. Easy to clean.

Performance Parameters of flush diaphragm industrial pressure sensor transmiter
Measurement Range 0~10Kpa…~20MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability& Hysteresis 0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating

Ex ia IIC T6 Ga

Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.25kg
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire

Hydraulic And Pneumatic Systems BPHT24 Flush Diaphragm Industrial Pressure Sensor

Hydraulic And Pneumatic Systems BPHT24 Flush Diaphragm Industrial Pressure Sensor

Hydraulic And Pneumatic Systems BPHT24 Flush Diaphragm Industrial Pressure Sensor
Hydraulic And Pneumatic Systems BPHT24 Flush Diaphragm Industrial Pressure Sensor


Hydraulic And Pneumatic Systems BPHT24 Flush Diaphragm Industrial Pressure Sensor

Ordering tips

1. When selecting products, please ensure that the contact parts with the measured medium are compatible.
2. Please note that explosion-proof products do not include digital display heads when placing an order.
3. When ordering a transmitter with an LCD or LED display head, the transmitter's power should not be less than 20VDC.
4. To ensure reliable operation of the product, we recommend that users install anti-lightning devices on site and ensure reliable grounding of the product and power supply.
5. The rated operating temperature range of fluorine rubber O-rings is -20℃ to 250℃. When the product operates at a temperature below -20℃, EPDM O-rings should be selected.
6. Cables are not included by default. If needed, three materials are available for selection. Unless otherwise specified, polyethylene cable material can be used. If you need a different cable material, please specify in your order.
7. If there are special requirements such as strong vibration, instant impact force, strong electromagnetic or radio frequency interference, please inform us and specify in your order.

Hydraulic And Pneumatic Systems BPHT24 Flush Diaphragm Industrial Pressure Sensor

Hydraulic And Pneumatic Systems BPHT24 Flush Diaphragm Industrial Pressure SensorHydraulic And Pneumatic Systems BPHT24 Flush Diaphragm Industrial Pressure SensorHydraulic And Pneumatic Systems BPHT24 Flush Diaphragm Industrial Pressure Sensor


FAQ:

Q1:Are you manufactrade company?

A1:We are manufactrader with more than 30 years of experience.

Q2:Customized Product

A2:We provide OEM and Custom-Design services.

Q3:Quality Quarantee

A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.

Q4:Shipment&packing

A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.

Q5:Contact US

A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
