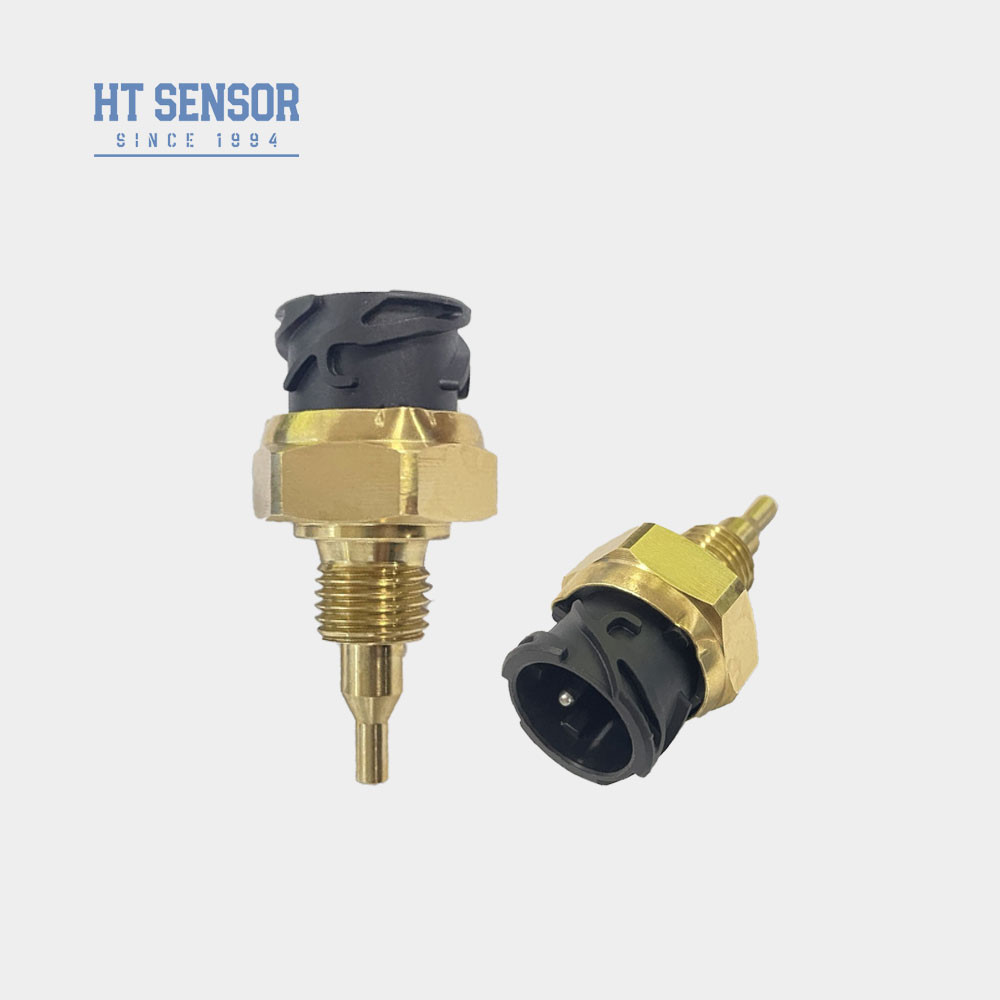

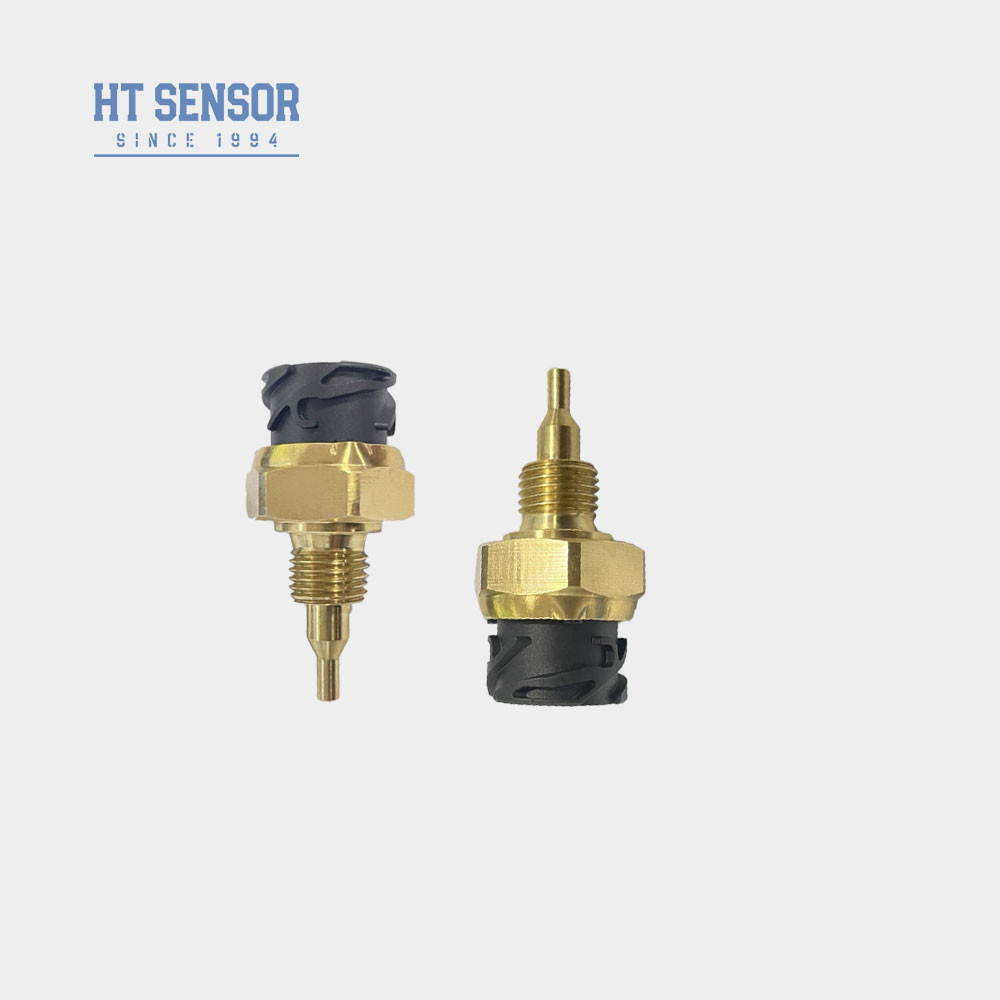

BT93420 Temperature Indicator Transmitter
Introduction of temperature induicator transmitter:
BT93420-I temperature indicating transmitter adopts Class A PT100/PT1000, brass shell, fast heat conduction, high precision, good stability, strong anti-interference ability, waterproof, explosion-proof design, high temperature resistance, impact resistance and so on.And control system integration, the realization of automatic temperature control and monitoring.
Product Features of temperature induicator transmitter: - Full stainless steel structure, good corrosion resistance.
- Analog output and digital output are both available for selection.
Applications of temperature induicator transmitter: - Monitor the temperature of generators, transformers, cables, and other critical equipment.
- Industrial Automation.
- Temperature measurement of various gases or liquids in pipelines in industries such as petroleum, chemical, power, and hydrology.
| Performance Parameters of temperature induicator transmitter |
| Measurement Range | -55~200ºC |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | Brass material |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.1Kg |
| Order Guide |
| BT93420 | Temperature Indicator Transmitter |
| | Code | Outline Construction |
| I | Blue Terminal Box |
| II | 2088 housing |
| III | 2088+LED |
| IIIA | 3051+LED |
| | Measurement Range | -55~1200ºC |
| | Code | Power Supply |
| D1 | 24VDC |
| D2 | Other |
| | Code | Output Signal |
| S1 | 4~20mADC | S4 | 0~10mADC |
| S2 | 1~5VDC | S5 | 0~20mADC |
| S3 | 0~5VDC | S6 | 0~10VDC |
| | Code | Pressure Connection |
| J1 | M27X2 Male |
| J2 | Other |
| | Code | Insertion depth |
| L | Actual insertion depth |
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
