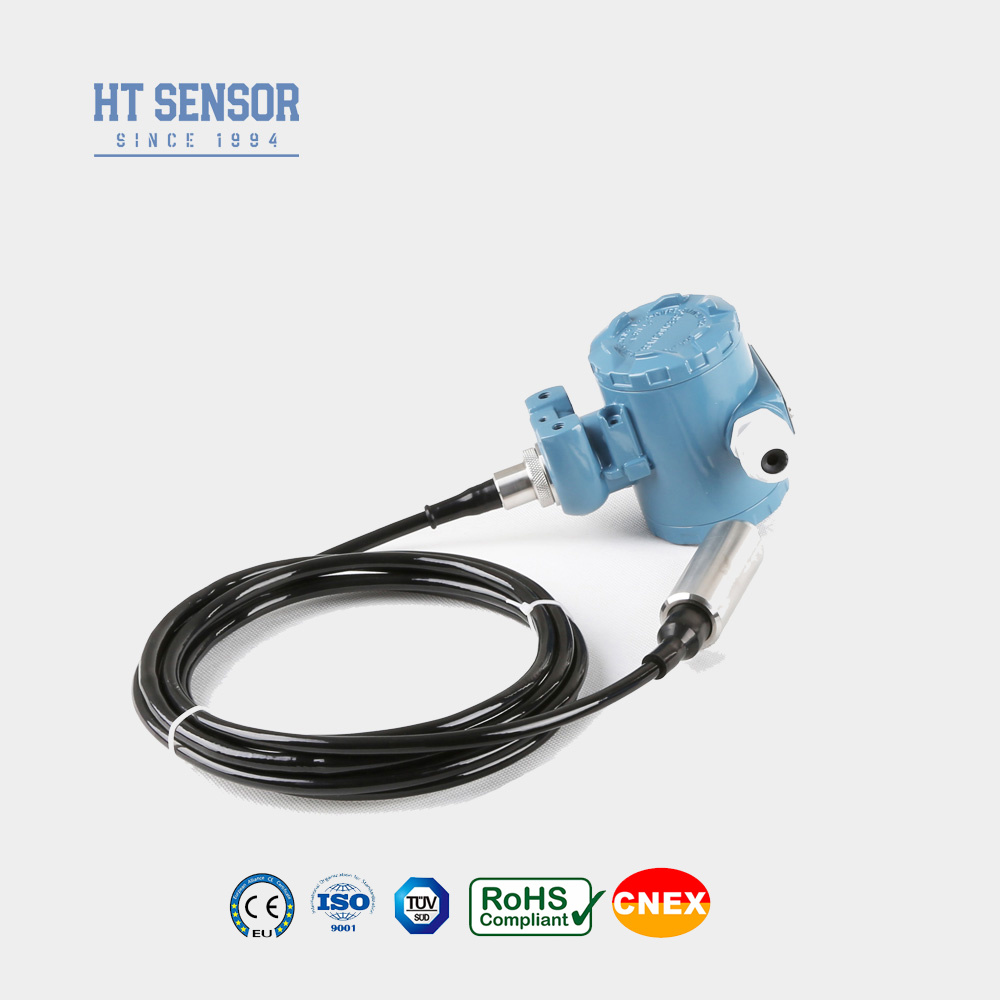

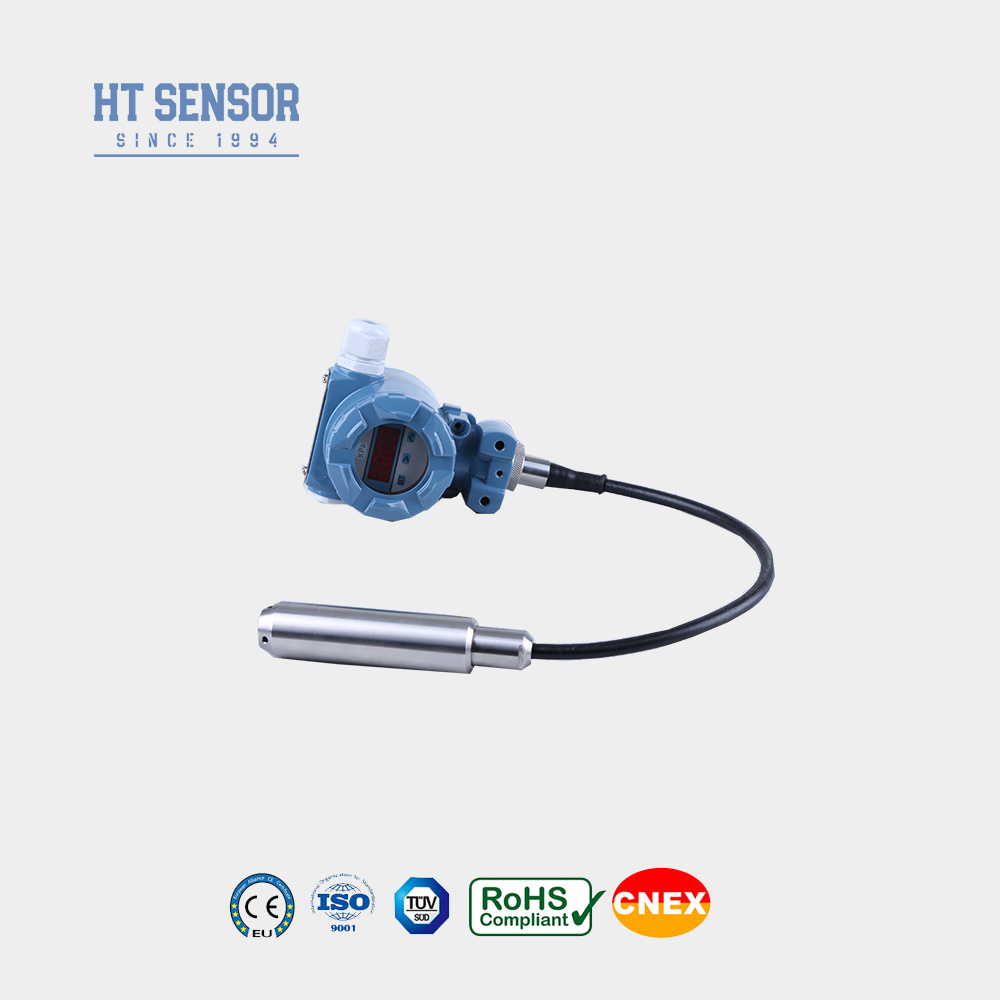

BH93420-3051A Water level Transmitter
Introduction of water level transmitter measurement:
BH93420-3051A water level transmitter have a compact structure, simple adjustment and flexible installation provide convenience for users to use easily. 4~20mA, 0~5v, 0~10mA and other standard signal output modes can be selected by the user according to the needs.
Using the principle of hydrostatics to measure liquid level is an important application of pressure sensors. The special cable with a vent tube in the middle and special sealing technology ensure the watertightness of the sensor, and make the reference pressure chamber communicate with the environmental pressure, so as to ensure the high precision and high stability of the measurement.
Product Features of water level transmitter measurement: - Split-type design, facilitating on-site wiring and calibration.
- LED LCD display.
- Explosion-proof rating : ExiaIICT6.
- High protection : IP68.
- Cable : PE,PU.PTFE.
Applications of water level transmitter measurement: - Compatible with 316LSS,noncorrosive liquids.
- Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc.
- Diesel, fuel, and other oil tank level monitoring.
| Performance Parameters of water level transmitter measurement |
| Measurement Range | 0~10m…400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, l1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | | 4 wire |
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded. | Order Guide |
| BH93420 | Code | Outline Construction |
| | III | Liquid level transmitter with the 2088 housing |
| | | Measurement Range | 0~10m…400mH2O |
| | | | Code | Power Supply |
| | | | D1 | 24VDC |
| | | | | Code | Output Signal |
| | | | | S1 | 4~20mADC | S2 | RS485 |
| | | | | | Code | Electrical Connection |
| | | | | | B5 | 2088 with display |
| | | | | | B6 | 3051A |
| | | | | | | Code | Pressure Type |
| | | | | | | G | Gauge Pressure |
| | | | | | | A | Absolute Pressure |
| | | | | | | S | Sealed Reference Pressure |
| | | | | | | | Code | Material |
| | | | | | | | 01 | 304 Stainless Steel |
| | | | | | | | 02 | 316L Stainless Steel |
| | | | | | | | | Code | Cable Material |
| | | | | | | | | C1 | PE |
| | | | | | | | | C2 | PU |
| | | | | | | | | C3 | PTFE |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
