BT93420 Temperature Indicator Transmitter
Introduction:
BT93420 temperature indicator transmitter ,The working principle of the Pt100 is based on the temperature coefficient of the platinum resistance, that is, the resistance value of the platinum resistance changes with the change of temperature. When Pt100 is in contact with the measured temperature, the change in temperature will cause the resistance value of Pt100 to change. By measuring the resistance value of Pt100, we can indirectly obtain the value of the measured temperature
Product Features: - Full stainless steel structure, good corrosion resistance
- Analog output and digital output are both available for selection
- Terminal box, 2088 LCD, or LED display are available for selection
Applications: - Monitor the temperature of generators, transformers, cables, and other critical equipment.
- Industrial Automation.
- Temperature measurement of various gases or liquids in pipelines in industries such as petroleum, chemical, power, and hydrology.
| Performance Parameters |
| Measurement Range | -55~1200ºC |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |

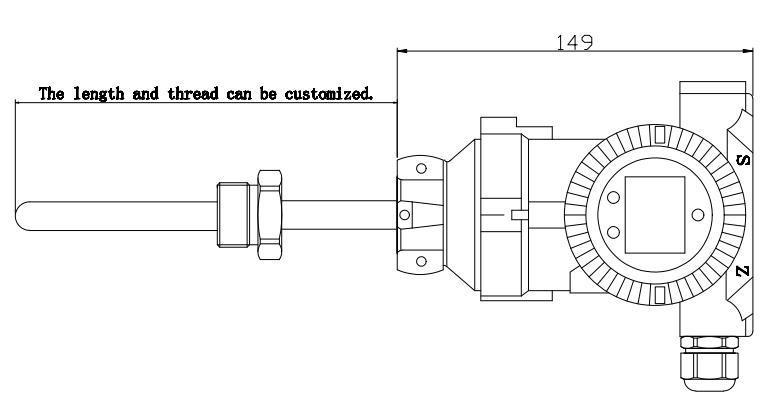

| Outline Construction |
| Terminal Box |
|
| Order Guide |
| BT93420 | Temperature Indicator Transmitter |
| | Code | Outline Construction |
| I | Blue Terminal Box |
| II | 2088 housing |
| III | 2088+LED |
| IIIA | 3051+LED |
| | Measurement Range | -55~1200ºC |
| | Code | Power Supply |
| D1 | 24VDC |
| D2 | Other |
| | Code | Output Signal |
| S1 | 4~20mADC | S4 | 0~10mADC |
| S2 | 1~5VDC | S5 | 0~20mADC |
| S3 | 0~5VDC | S6 | 0~10VDC |
| | Code | Pressure Connection |
| J1 | M27X2 Male |
| J2 | Other |
| | Code | Insertion depth |
| L | Actual insertion depth |
